Model Number : ST6200DB-SD
Place of Origin : China
Brand Name : SUNTOR
Certification : FCC, CE, RoHS
MOQ : 1 set
Payment Terms : T/T, Western Union, Paypal
Supply Ability : 1000 set/ month
modulation : COFDM
Working frequency : 138MHz~4400MHz adjustable
Output power : 1~5W(customized)
Resolution : 720*576, 25fps
analog interface : CVBS
Video format : PAL / NTSC
Transmission distance : Airborne area>80km; Marine area>40km; Urban area >7km; Suburb area>10km
Power supply : DC 14.4V
300~4400MHz manpack 5W analog SD video transmitter up to 10km
Introduction:
ST6200DB-SD narrow bandwidth series wireless video transmission system(Strict compliance with requirements of the public security departments transmission frequency bandwidth: Only use 2MHz bandwidth), using narrow bandwidth COFDM modulation techniques, and combining diversity reception of foreign advanced technology, comparing with the 8MHz equipments, this model is more sensitive, stronger anti-interference, supports longer distance. It is very suitable used in the complex environment; Audio video encoder uses the H. 264/MPEG-2 standard, definition is up to DVD(720*576), clear picture quality, bright colors, image smooth.
Functions & Features:
Transmitter parameter
Modulation | Working frequency | 300MHz~4.4GHz |
Output power | 1~5W adjustable on LCD | |
Modulation | COFDM (64QAM, 16QAM, QPSK) | |
Channel bandwidth | 2/2.5/4/8MHz | |
Encryption mode | AES 128Bit/SUNTOR Basic Scrambling | |
Code stream | 2Mbps~12Mbps | |
Audio and video | Compression format | H.264(Embedded Audio) |
AV input | BNC | |
Video Resolution |
PAL 720 x 576 NTSC 720 x 480 |
|
Image frame rate | 30fps | |
Video Input Interface | BNC female port | |
Audio Input Interface | BNC female port | |
Power supply |
1. Built-in Lithium Battery: DC 14.4V 2. External Power In: DC12V~16.8V |
|
LCD display | Display and Manually Adjust Parameters | |
Power switch | ON/OFF | |
Size | 200×125×50 mm (L×W×H) | |
Weight | 1.5kg |
Applications:
Available for Long Range Line-of-Sight and Urban Non-Line-of-Sight applications.

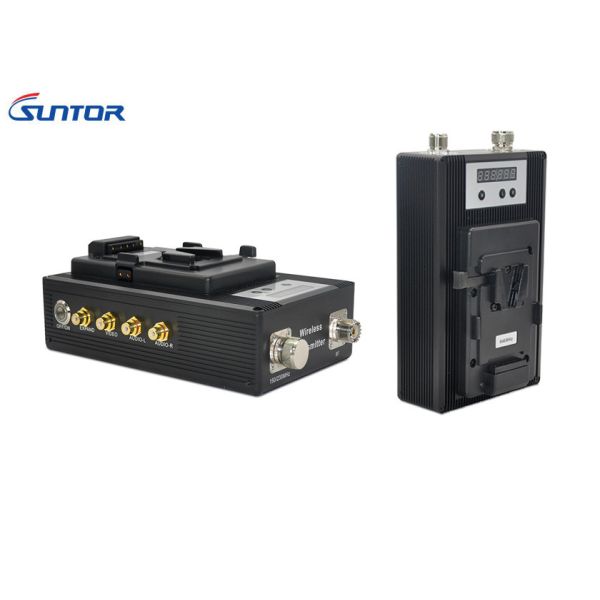

300-4400MHz Manpack Analog Video Transmitter , Analog Transmitter And Receiver Images |
